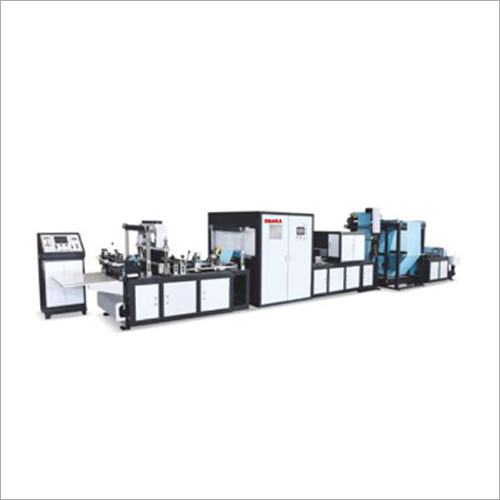

Non Woven Laminated Box Bag Making Machine
Non Woven Laminated Box Bag Making Machine Non Woven Laminated Box Bag Making Machine Non Woven Laminated Box Bag Making Machine

Non Woven Laminated Box Bag Making Machine

25,00000.00 INR/Piece

Product Details:

  • Product Type Laminated box bag
  • General Use Laminated box bag
  • Weight (kg) 900 Kilograms (kg)
  • Automatic Grade Automatic
  • Drive Type Electric
  • Bag Type Shopping Bag
  • Computerized Yes
  • Supply Ability : 10 Set Per Day
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 25,00000.00 INR/Piece

Product Specifications

  • 900 Kilograms (kg)
  • 1 Year
  • 45 Centimeter (cm)
  • Yes
  • 380 Volt (v)
  • 28000 Watt (w)
  • Other
  • Laminated box bag
  • Laminated box bag
  • 1000*2000*2600 Millimeter (mm)
  • Automatic
  • Electric
  • Shopping Bag

Trade Information

  • 10 Set Per Day
  • 10 Days
  • All India

Product Description

Leader Laminated Non Woven Box Bag Making Machine is focused on the production of the laminated, coated and uncoated three-dimensional box bags with handle attachment. It can directly forming Non Woven Box Bags with loop handle automatically and no need to reverse to get finished box bag.

Manufacturing Process

These bags are shaped in one time with less labor force, high efficiency and low production cost. It only needs two persons, thus the labor force cost is largely saved.

This non-woven bag producing machine with the best competitive advantage in the market. The bag manufactured through this machine can take weight up-to 20 kg.

Technical Specification :
Model :
 OS-700BBS





  • Production Speed: 40-55 pcs/ min
  • Replacing Die: 30-45 min
  • Bag Size: 8-20cm (Gusset) 24-50cm (Width) 20-45cm (Height)
  • Loop Handle Range: 36-54cm
  • Air Pressure Request: 1.2m /min, 1.0 Mpa
  • Power Supply: 380v, 50Hz, 3 Phase
  • Power: 28Kw
  • Weight: 900Kg
  • Overall size: 10000*2000*2600mm

OSAKA INTERNATIONAL INC
